Product Details
Product Features
1. Non-contact cleaning – No damage to the base material or part surface.
2. High-precision cleaning – Supports selective cleaning with accurate position and controlled cleaning size/area.
3. Eco-friendly & safe – No chemical cleaning agents required, no consumables, and no secondary pollution.
4. Easy operation & automation-ready – Can be operated by hand or integrated with a robot for automatic cleaning.
5. Ergonomic design – Reduces operator fatigue and labor intensity.
6. High cleaning efficiency – Faster processing and time-saving.

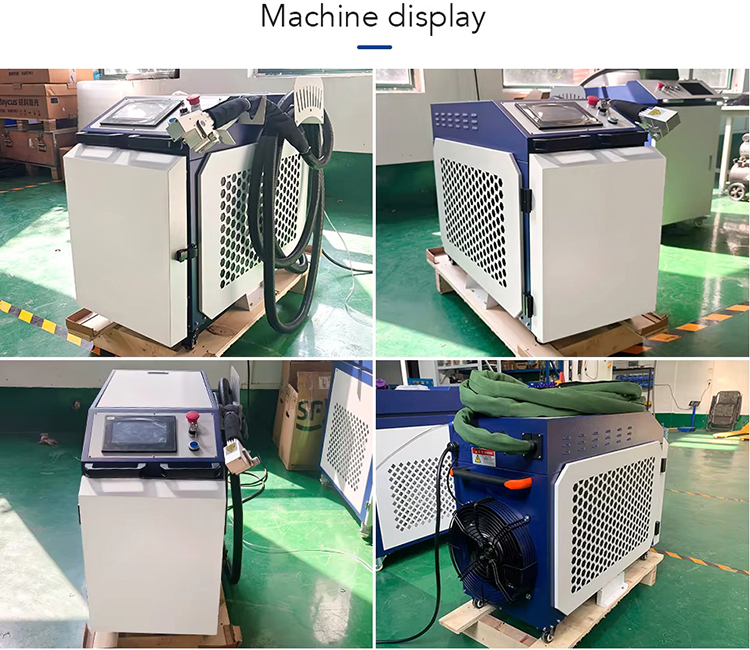

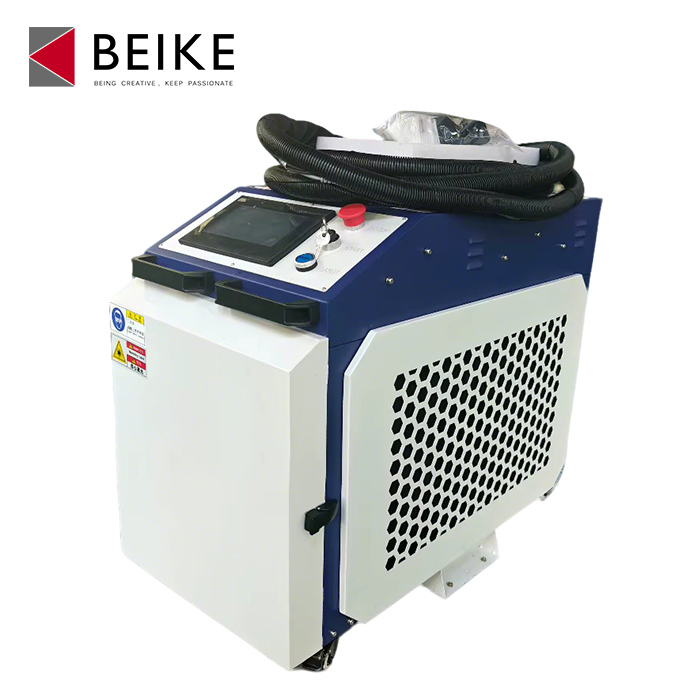

Laser Cleaning Equipment Overview
Our laser cleaning equipment is a new-generation, high-tech surface treatment solution. It is easy to install, easy to control, and can be integrated into automated production lines.
Operation is simple: connect the power supply, start the system, and begin cleaning. No chemical reagents are required, and there is no cleaning media, no water, and minimal dust, making the process safe and environmentally friendly.

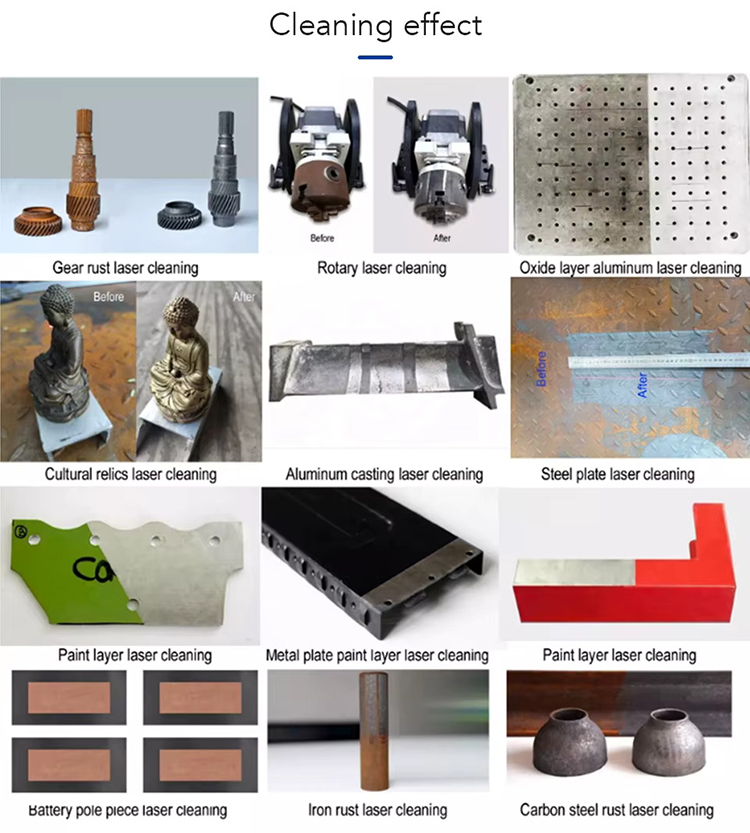

This system delivers high surface cleanliness and can effectively remove resin, paint, oil stains, dirt, rust, coatings, and oxide layers from metal surfaces.
Applications

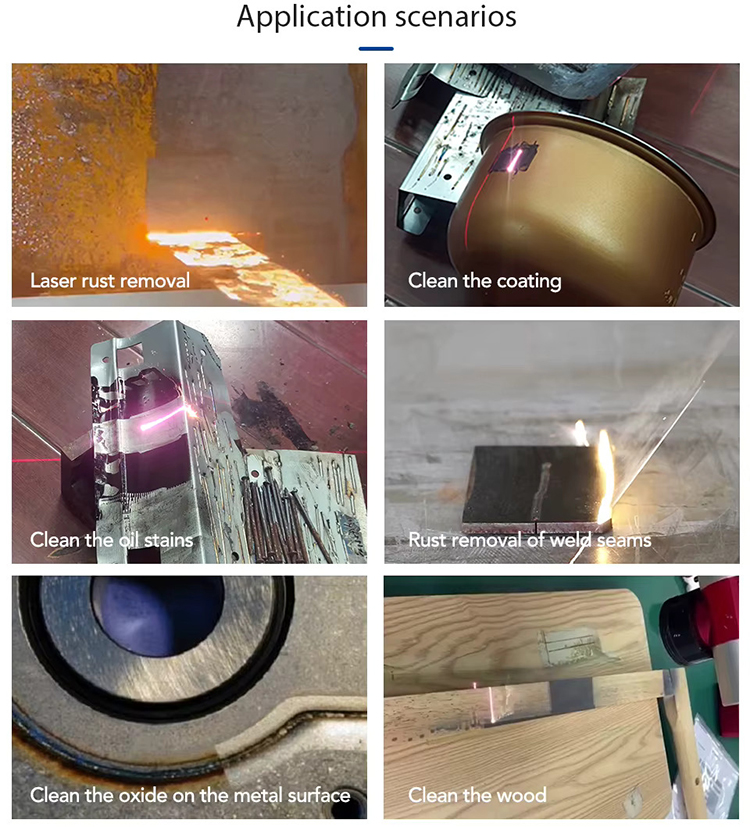

Widely used in many industries, including shipbuilding and maintenance, automotive repair, rubber mold cleaning, high-end machine tools, rail/track maintenance, and environmental protection applications.

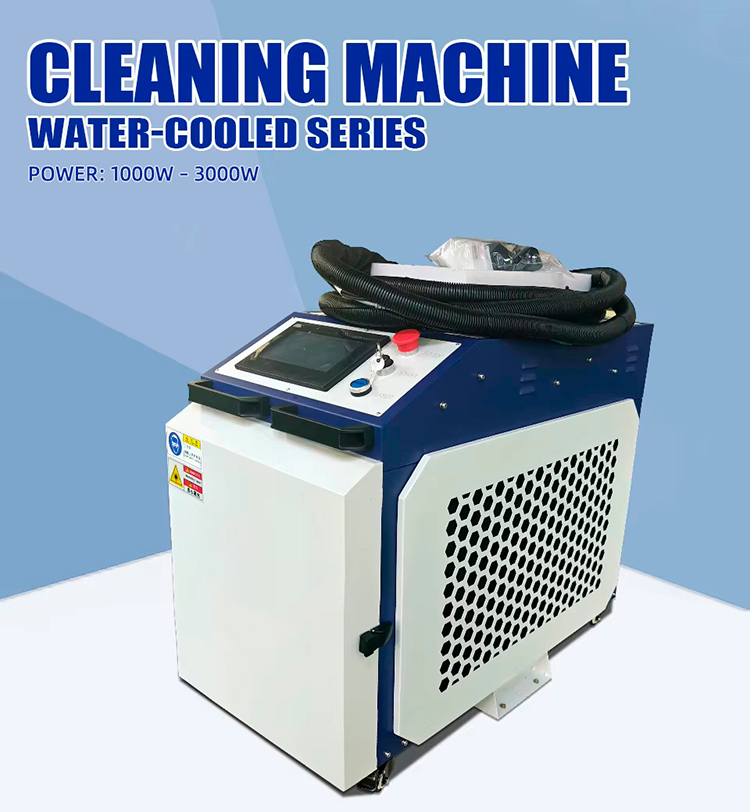

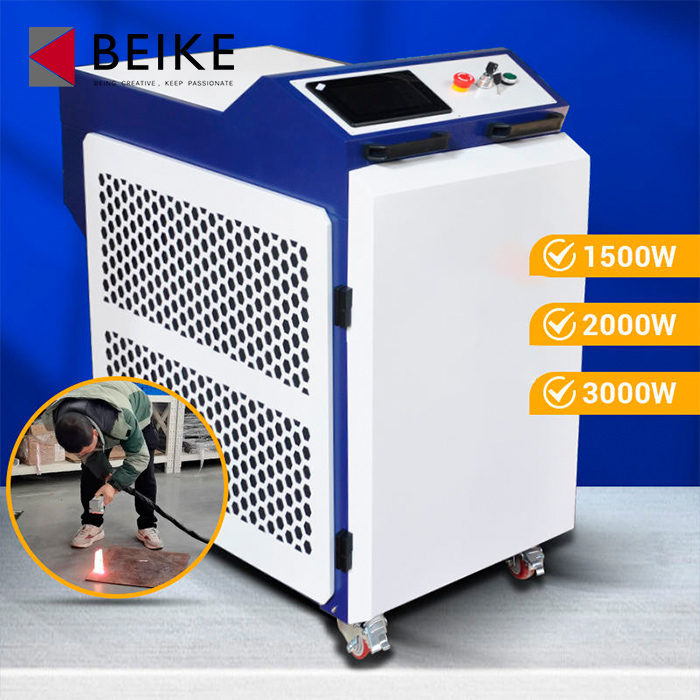

| Product Name | 1000W – 3000W Laser Cleaning Machine |
| Working Mode | Continuous |
| Laser Power | 1500W/2000W/3000W (Optional） |
| Fiber Laser | RAYCUS/JPT/MAX (Optional） |
| Cooling Method | Water-cooler |
| Polarization State | Random |
| Power Regulation Range | 10% |
| Center Wavelength | 1080nm |
| Spectral Bandwidth (3dB) | 3nm |
| Short Time Power Stability | ±1% |
| Long Term Power Stability | ±2% |
| Beam Quality (M ²) | 1.3 |
| Modulation Frequency | 20KHz |
| Indicating Red Light Power | 150μW |
| Output Fiber Core Diameter | 10m |
| Bending Radius of Fiber Optic Cables | 200mm |
| Output Method | Standard QBH（LOC） |
| Rated Power Consumption | 3.5KW |
| Working Environment Temperature | 10-40℃ |
| Humidity of laser working environment | 10% - 80% |

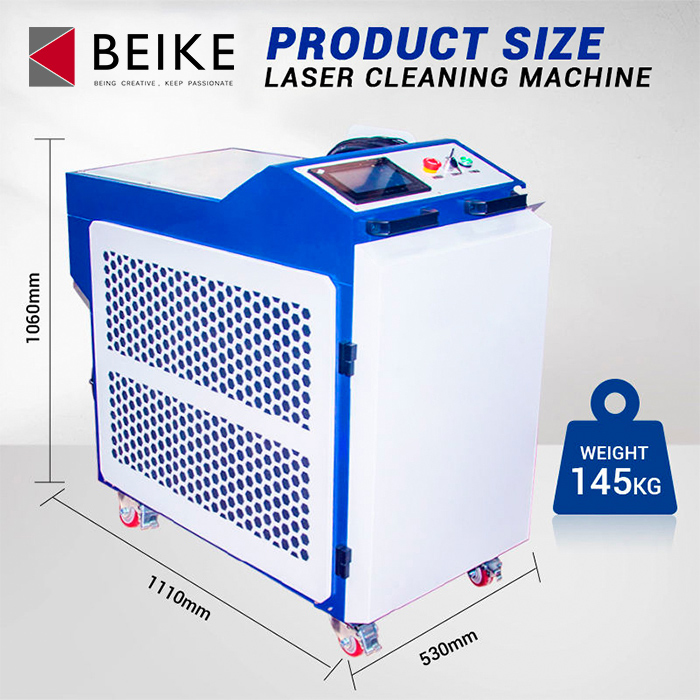

| Package Size(mm) | 1213*606*1239 |
| Gross Weight(KG) | 198 |
| Working Woltage | AC380V±10% |
Approved Vendor for International Giants SIEMENS
Member of CLA ( China Laser Association)
CNGC(China Weapon Industry Corporation)Laser Equipment Supplier
Serving more than 150 countries and regions,
Annual total export exceeds 15 million US dollars
Professional provider of Wisdom solutions in China.
FAQ
Q1: What can I get the available machine if I don't know anything about laser?
BEIKE Laser will provide the customized application solution for your requirements, just tell us your cleaning requirements, then we shall feedback you with a good solution very much quickly.
Q2: Are you manufacturer or trader?
BEIKE Laser is the direct manufacturer with professional workers that operating with laser machine for many years. We not only provide you a suitable tool, but also work to help you produce better products and gain greater market competitiveness.
Q3: When I got this machine, but I don’t know how to use it. What should I do?
BEIKE Laser provides free installation and training for users’ technicians, ensures that users can get familiar with operation methods and put machines into use as soon as possible.
Q4: If some problems happen to this machine,what should I do?
BEIKE Laser provides 3 years warranty and lifetime maintenance for the laser cleaning machines. Free repair for mechanical failure and parts damage (no human factors and force majeure factors) under warranty (replacement parts except wearing parts are provided by BEIKE Laser are free of charge). Charging at cost when out of warranty.
