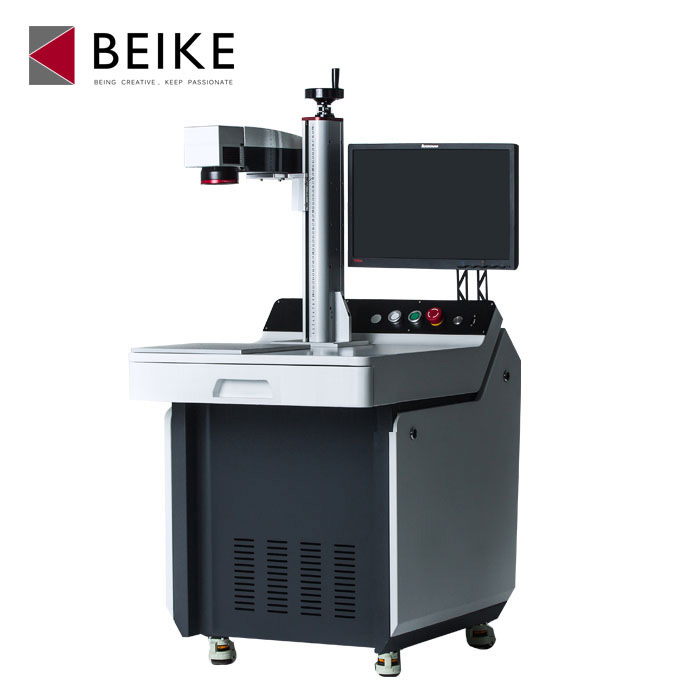

Product Details
Model | BK-GX20W | BK-GX30W | BK-GX50W | BK-GX60W | BK-GX100W | |||
Average Power | ≥20W | ≥30W | ≥50W | ≥60W | ≥100W | |||
Wavelength | 1064nm | |||||||
M2 | ≤1.3 | ≤1.8 | ||||||
Max Pulse Energy | 0.8mj | 1.2mj | ||||||
Standard Marking Range | 110*110mm | |||||||
Pulse Repetition Rate Range | 1-400 khz | |||||||
Pulse Duration | 200ns | 250ns | ||||||
Delivery Cable Length | 2M | 3M | ||||||
Min Resolution (mrad) | 0.012 | |||||||
Min Line Width(mm) | 0.01 | |||||||
Min Character(mm) | 0.15 | |||||||
Repetition Accuracy(mm) | 0.002 | |||||||
Cooling way | Air Cooling | |||||||
Power Adjustment Range (%) | 0-100 | |||||||
Storage Temperature Range/℃ | _10~60 | |||||||
Range of working temperature (℃) | 0-40 | |||||||
Power Supply | 220V+10%/50/60Hz/4A or custom made based on customer’s requirement | |||||||
Machine Net Weight | 100KGS | |||||||
Machine Size | 600*830*1430mm | |||||||
Machine Gross Weight | 120KGS | |||||||
Machine Packing Size | 1040*1140*820mm | |||||||
International Shipping | By Express, By Air or By Sea | |||||||
Warranty | 3 Years |
If you are concerned about maintenance, please choose us
3 years warranty
10 times compensation on fake
Worry-free return & Lifelong maintenance
24 hours service
Overseas third-party support
The machine has a long warranty of 3 years. The equipment leaves the factory after 26 rigorous inspection procedures and a 72-hour aging test to ensure that the best equipment is delivered to the customer.
Approved Vendor for International Giants SIEMENS
Member of CLA ( China Laser Association)
CNGC(China Weapon Industry Corporation)Laser Equipment Supplier
Serving more than 150 countries and regions,
Annual total export exceeds 15 million US dollars
Professional provider of Wisdom solutions in China.
FAQ
1.Are you manufacturer or trader?
We are the manufacturer with professional workers that operating with laser machine for many years and welcome to visit our factory. We not only provide you a suitable tool, but also work to help you produce better products and gain greater market competitiveness.
2. I know nothing about the fiber laser machine, what kind of machine I should choose?
Please tell us what would you like to do with this machine. And sending us a sample picture is better. Then we will send you a perfect solution and suggestion.
3.what materials are suitable for this machine?
The fiber laser marking machine can be used for all kinds of metal materials and parts of non-metal materials.
4.This model is not suitable for me, do you have more models available?
A: Sure, we have many other models can be provided if I know your special requirements.
5. How about the guarantee of your laser marking machines?
3 years warranty is available.
