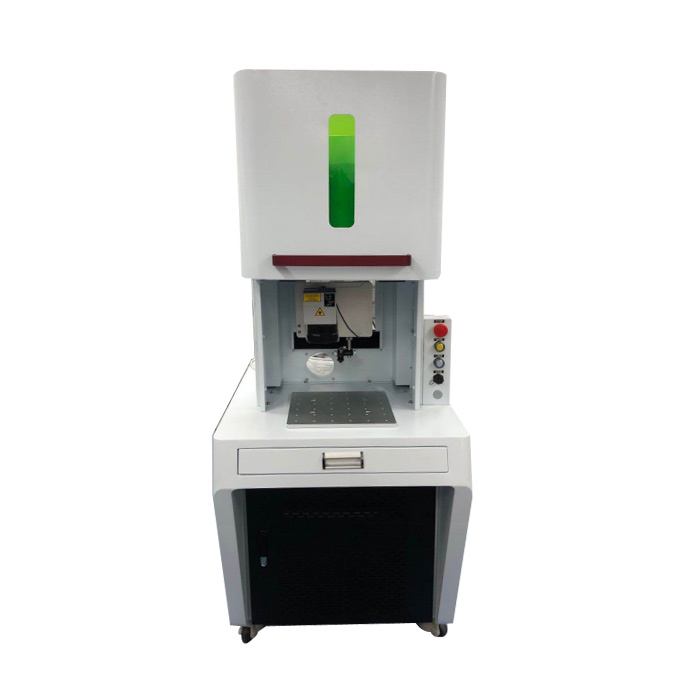

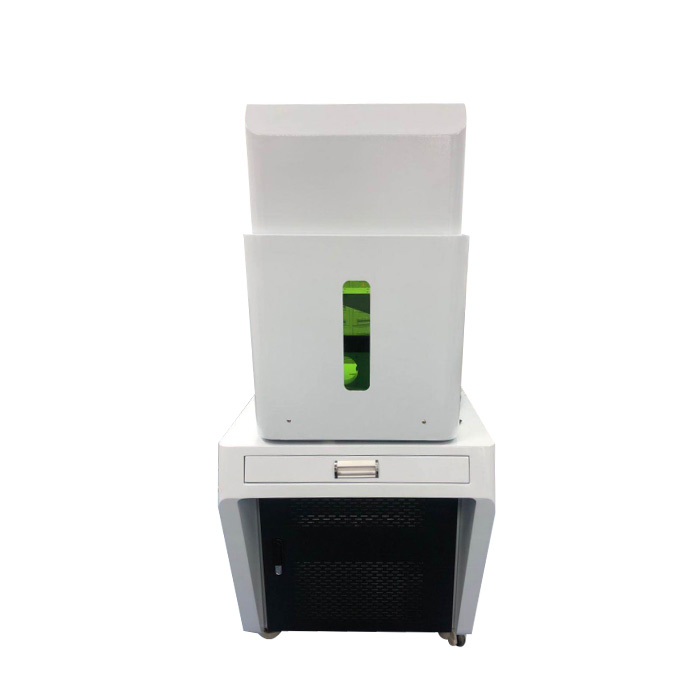

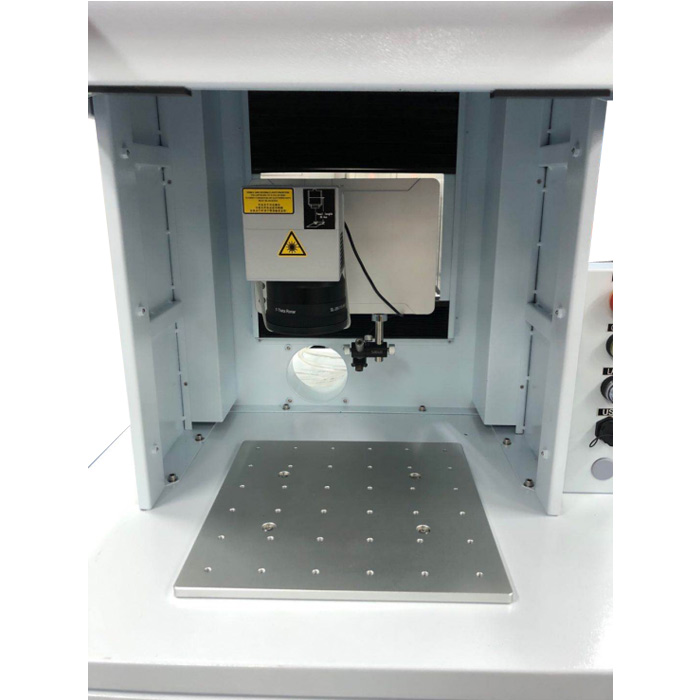

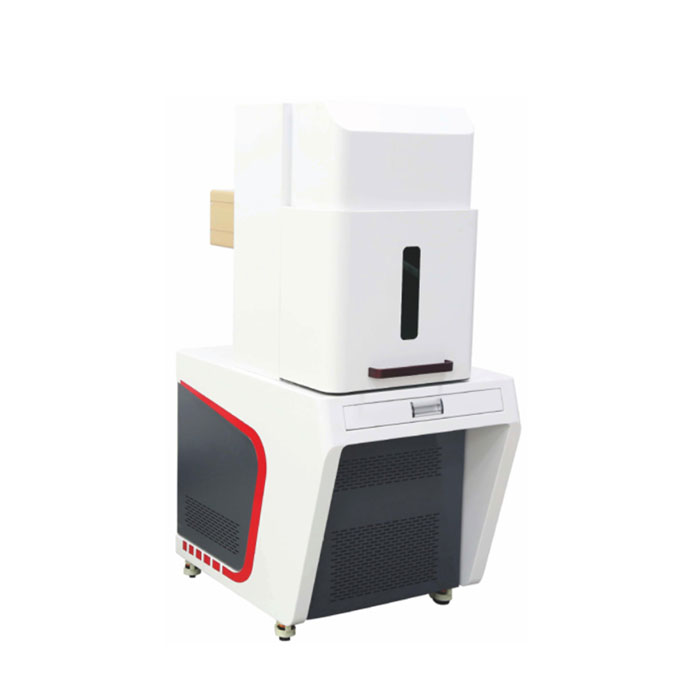

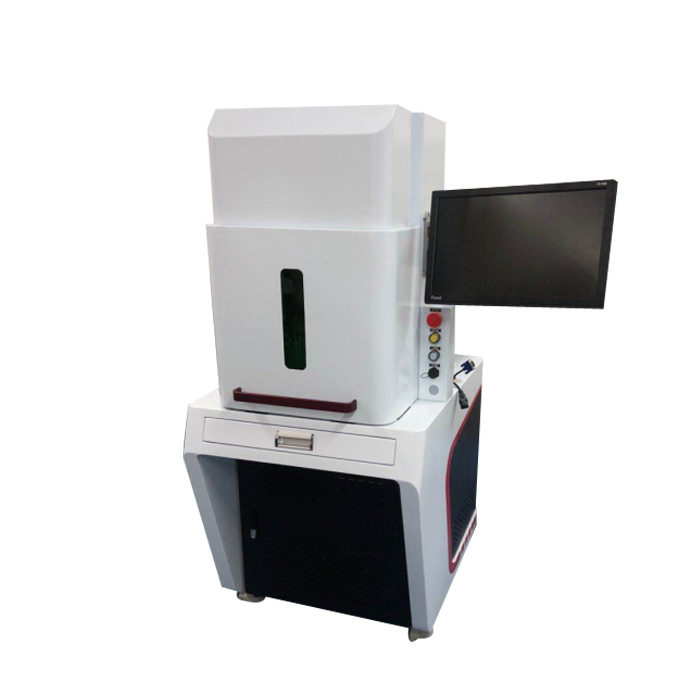

Ultraviolet Laser Marking Machine

UV laser marking machine was developed using 355nm UV laser. The machine uses third-order cavity frequency multiplication technology compared with infrared laser, 355 UV light focusing spot is extremely small, can be Reducing the mechanical deformation of the material to a great extent and having a small effect on the processing heat.

Product Details

0:00 / 0:00



Applications:

Mainly based on its unique low-power laser beam. It is especially suitable for the high-end market of ultra-fine processing. The surfaces of bottles for cosmetics, pharmaceuticals, food and other high-molecular materials are marked with fine effects and clear and firm markings. Better than ink coding and no pollution; flexible pcb board marking, dicing; silicon wafer micro hole, blind hole processing; LCD liquid crystal glass two-dimensional code marking, glass surface punching, metal surface coating marking, Plastic buttons, electronic components, gifts, communications equipment, building materials, and so on.



Electronic components, integrated chips, electrical appliances, communication equipment, tools, precision machinery, frames, watches and clocks, auto parts, crystal glass marking, plastic cases ETC.



Product advantages:

It conforms to European CE standards and is equipped with high-speed scanning galvanometer. It has high precision and high speed and can replace manual sand blasting. The software control system is used for Windows interface. It supports multiple file formats including Al, JPG, CDR, BMP and so on. Automatic marking, easy to operate. DEM and wholesale.



Model BK-UV3W BK-UV3W BK-UV10W BK-UV15W
Wavelength 355nm
Laser Power   >3W@30kHz   >5W@40kHz   >10W@60kHz   >15W@60kHz
Pulse Duration <15ns@30kHz <15ns@40kHz 18ns@60kHz
Frequency Range 20kHz-150kHz 40kHz-300kHz
Beam Quality M² ≤ 1.2
Min Line Width <0.01mm
Mini line speed <0.01mm
Min Character <0.12mm
Marking Speed ≤8000mm/s
Marking Depth ≤0.5mm
Repeat Precision ±0.001mm
Power Supply 220V(±10%)/50Hz or Custom-Made Based On Local Standard
System Composition Control System, Industrial Computer, Working Table
Working Environment Clean and Dust Free
Working Temperature 0~40℃
Machine Storage Temperature -15~50℃
Cooling Way Water Cooling
Machine Net Weight 230KGS
Machine Size 900*750*1510mm
Machine Gross Weight 260KGS
Machine Packing Size 1440*1130*1300mm
International Shipping By Express, By Air or By Sea
Warranty 3 Years



uv laser marking



laser marking machine cost



Pre-sales Service

1. 12 hours quick pre-sales response and free consulting;

2. Any kind of technical support are available for users;

3. Free Sample Making is available;

4. Free Sample Testing is available;

5. Progressing solution design will be offered to all the distributor and users.



After-Sales Service

1. 12 languages 24 hours Quick Feedback;

2. "Training Video", "Instruction Book", and "Operation Manual" will be offered;

3. Brochures for simple trouble-shootings of the machine is available;

4. Plenty of technical support online is available;

5. Quick Back-up Parts Available & Technical Assistance;

6. Free training service is available.





Approved Vendor for International Giants SIEMENS

Member of CLA ( China Laser Association)

CNGC(China Weapon Industry Corporation)Laser Equipment Supplier

Serving more than 150 countries and regions,

Annual total export exceeds 15 million US dollars

Professional provider of Wisdom solutions in China.





FAQ

1.Are you manufacturer or trader?

We are the manufacturer with professional workers that operating with laser machine for many years and welcome to visit our factory. We not only provide you a suitable tool, but also work to help you produce better products and gain greater market competitiveness.

2. I know nothing about the fiber laser  machine, what kind of machine I should choose?

Please tell us what would you like to do with this machine. And sending us a sample picture is better. Then we will send you a perfect solution and suggestion.

4.This model is not suitable for me, do you have more models available?

A: Sure, we have many other models can be provided if I know your special requirements.

5. How about the guarantee of your laser marking machines?

3 years warranty is available.
