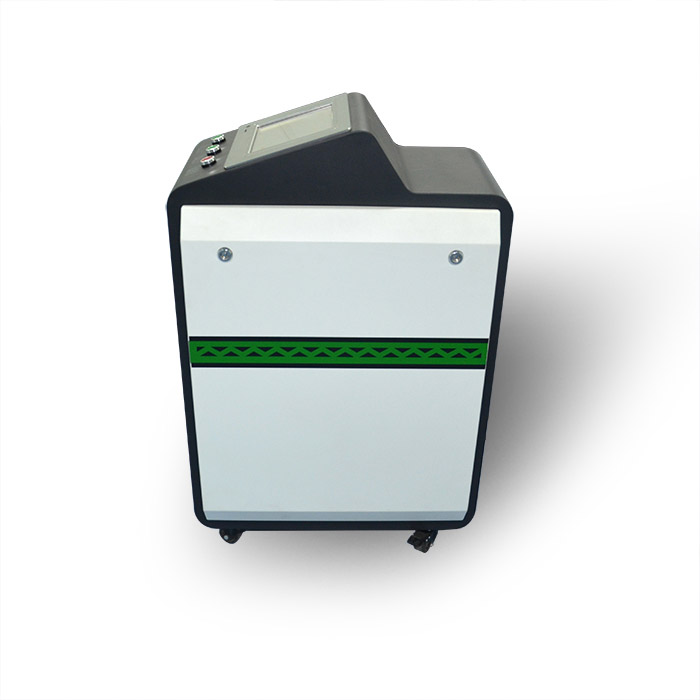

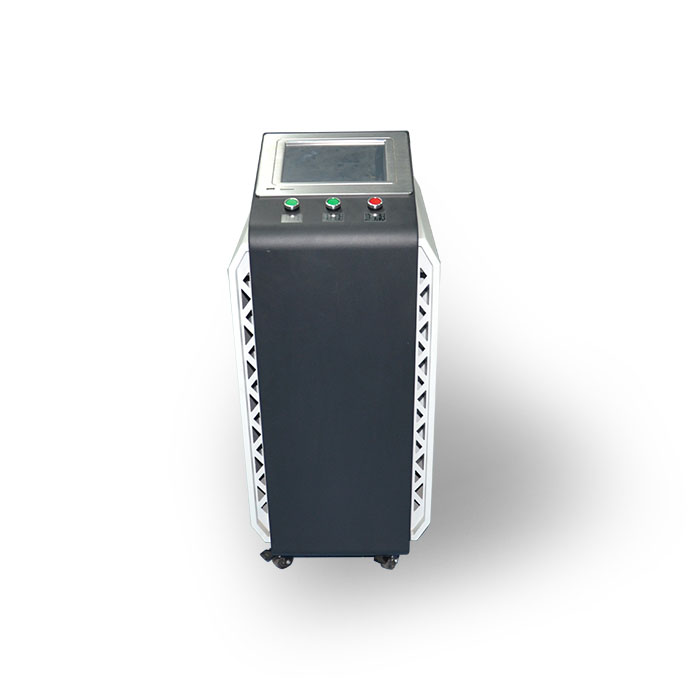

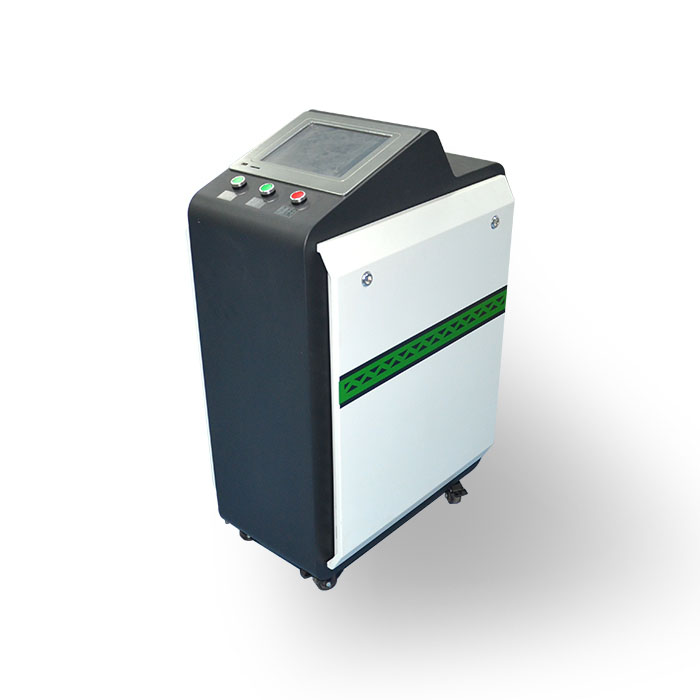

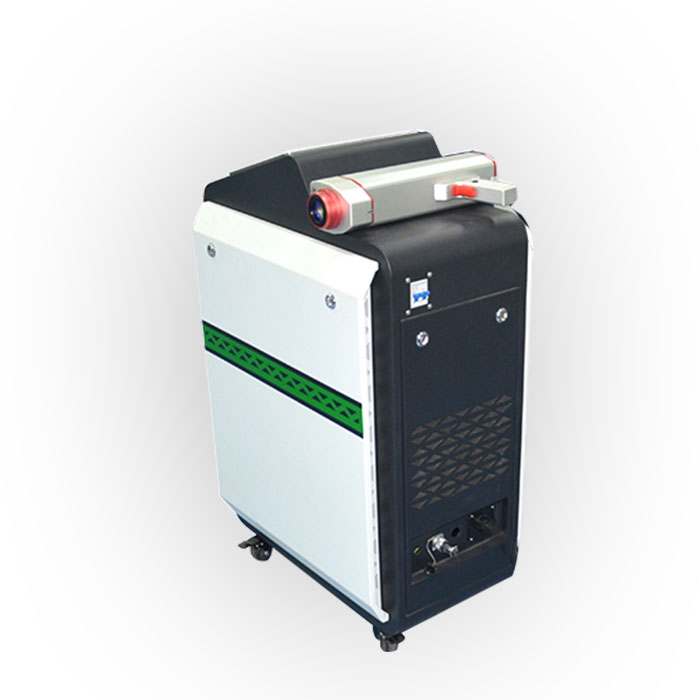

Portable Laser Cleaning Machine

CLEAN LASER provides surface preparation technology that’s both efficient and remarkably versatile for a growing list of industrial applications. Whether the surface is metallic, plastic, ceramics, glass, stone or concrete, the results speak for themselves.

Product Details

laser cleaning

0:00 / 0:00

APPLICATION AREAS



CLEAN LASER provides surface preparation technology that’s both efficient and remarkably versatile for a growing list of industrial applications. Whether the surface is metallic, plastic, ceramics, glass, stone or concrete, the results speak for themselves.



• Paint Removal & De-Coating

• Pre-Treatment for Adhesive Bonding & Coating

• Mold Cleaning & De-Oiling

• Labeling & Marking

• Structuring

• Restoration/Conservation

• Environment-friendly industries

• More



Laser cleaning machine



laser rust removal

Laser rust removal tool



Model BK-LC60 BK-LC70 BK-LC100 BK-LC120 BK-LC150 BK-LC200 BK-LC300W BK-LC500W BK-LC1000W
Laser source JPT IPG
Laser power(W) 60 70 100 120 150 200 300 500 1000
wavelength(nm) 1064
Output Power(W) >60 >70 >100 >120 >150 >200 >300 >500 >1000
Max.pulse energy(mJ) 1.5 0.2-1 50/100 100
Full power repetition rate range(kHz) 40~1000 47~1000 67~1000 80~1000 100~2000 120~2000 30~2000 200~4000 400~4000
Pulse repetition range(kHz) 1~1000 1~2000 2~2000 2~50
Pulse Duration(ns) 10-350 10-350 90-110
Longtime average power stability(%) <5 <5
Cooling method Air Cooling Water Cooling
Spectral width@3dB(nm) <15 <15
Beam diameter(mm) 6±0.5 6.5±0.5 6~9
Power adjustment range(%) 0-100 10-100
Range of working temperature/℃ 0-40 10-50
Storage temperature range/℃ _10~60 _10~60
Scan width(mm) Level 1-110 Level 1-110
Length of fiber(m) 3 meters ( or customizable) 3/10/20m 10/20m
Laser grade 4 4
Control system Autonomous research and development control system



TYPICAL CLEANING EFFICIENCY



60W - 200W

Laser power(W)

60

70

100

120

150

200

Peak Power(KW)

15

16

18

18-30

18-40

40

Focus Sopt(mm)

<1

Rusting(20um)

2.0㎡/h

3.0㎡/h

4.0㎡/h

4.8㎡/h

6.0㎡/h

8.0㎡/h

Oli Contamination
(20um)

2.5㎡/h

3.5㎡/h

4.5㎡/h

5.3㎡/h

6.5㎡/h

8.5㎡/h

Aluminum Oxide Film

1.5㎡/h

2.0㎡/h

3㎡/h

3.6㎡/h

4.5㎡/h

6㎡/h

Rubber Residues

4-5㎡/h

6-7㎡/h

8-10㎡/h

9-12㎡/h

11-15㎡/h

13-18㎡/h


300W - 1000W

Laser power(W)

300W/500W/1000W

Rusting Cleaning Efficiency

10-60㎡/h

Oli Contaminated Cleaning Efficiency

10-90㎡/h



TECHNOLOGY BENEFITS

• Fast set-up

• Easy to operate

• Quiet

• Leaves no residue

• Highly reliable

• Easy to automate

• Low operating costs

• Virtually maintenance-free

• No consumable media - no abrasives, chemicals, solvents

• Green process - no pollution

• Laser beam settings are precisely adjustable to optimize process speed & gentleness



Laser rust remover





Approved Vendor for International Giants SIEMENS

Member of CLA ( China Laser Association)

CNGC(China Weapon Industry Corporation)Laser Equipment Supplier

Serving more than 150 countries and regions,

Annual total export exceeds 15 million US dollars

Professional provider of Wisdom solutions in China.





FAQ

Q1: What can I get the available machine if I don't know anything about laser?

BEIKE Laser will provide the customized application solution for your requirements, just tell us your cleaning requirements, then we shall feedback you with a good solution very much quickly.

Q2: Are you manufacturer or trader?

BEIKE Laser is the direct manufacturer with professional workers that operating with laser machine for many years. We not only provide you a suitable tool, but also work to help you produce better products and gain greater market competitiveness.

Q3: When I got this machine, but I don’t know how to use it. What should I do?

BEIKE Laser provides free installation and training for users’ technicians, ensures that users can get familiar with operation methods and put machines into use as soon as possible.

Q4: If some problems happen to this machine,what should I do?

BEIKE Laser provides 3 years warranty and lifetime maintenance for the laser cleaning machines. Free repair for mechanical failure and parts damage (no human factors and force majeure factors) under warranty (replacement parts except wearing parts are provided by BEIKE Laser are free of charge). Charging at cost when out of warranty.
